Bulb Shape1
Integrated LED
Color Temperature
Warm to Cool White
Warranty
5 Year Limited - Fixtures
Amps
0.333-0.115/0.417-0.144/0.500-0.173A
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Thailand
Dimmable Function
0-10V; Integrated Sensor
DLC Classification
Standard; Standard
DLC Primary Use
Low-Bay Luminaires for Commercial and Industrial Buildings; Direct Linear Ambient Luminaires
Efficacy
134.00/133.51/133.18 LPW
Feature 1
120-347 Voltage - FOR USE IN CANADA
Feature 10
Suspension kit (sold separately)
Feature 2
Heat and tamper resistant, water-resistant and dust-proof. Can be used in food-processing facilities
Feature 3
IP65 and IK08 Rated
Feature 4
CCT and Wattage Selectable
Feature 5
2KV built-in Surge Protection
Feature 6
Non-corrosive (PC) polycarbonate housing
Feature 8
Integrated Microwave Sensor
Feature 9
5 Year Warranty
Incandescent Equivalent
300W-400W
Indoor Outdoor
Indoor;Outdoor
Lens Material
Polycarbonate (PC)
Long Description

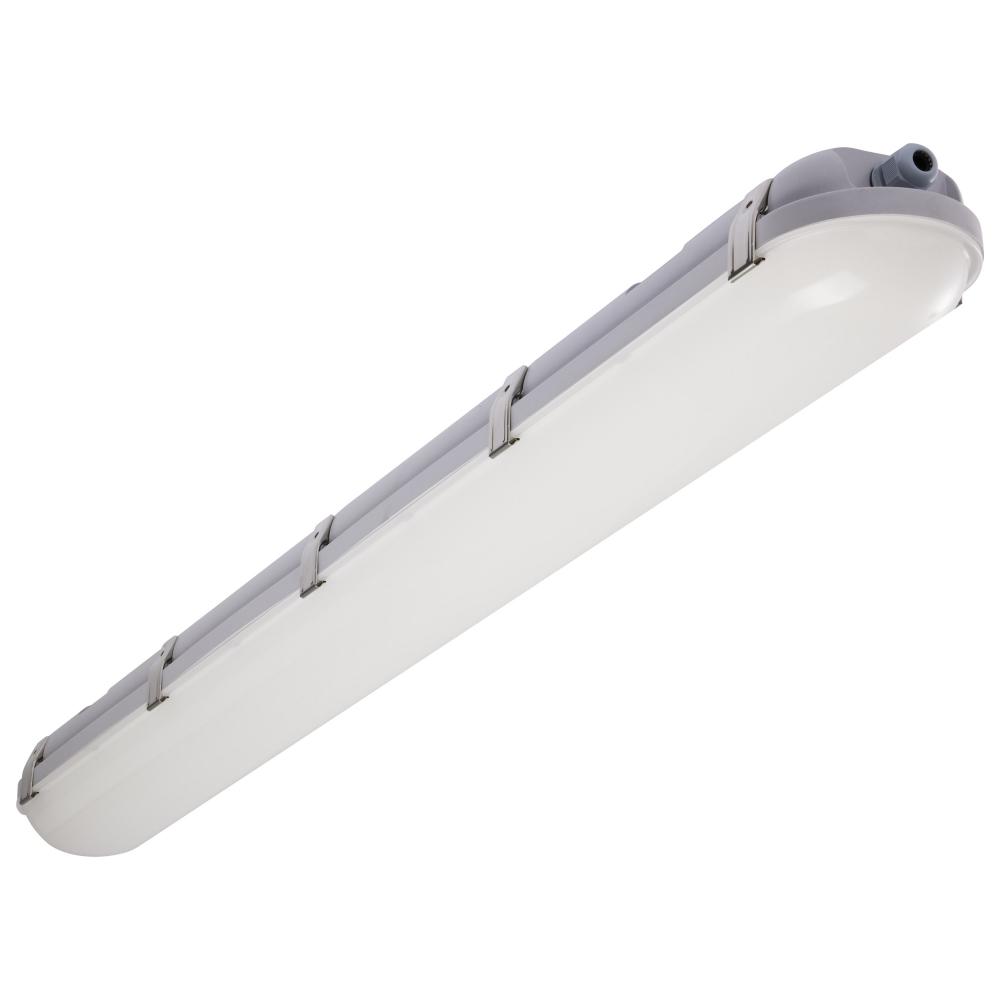

SATCO NUVO's 65-824R1 wattage selectable, 4 foot vapor proof fixture is a practical solution for interior and exterior lighting. Packed with improvements and features, this linear fixture is CCT and wattage selectable and wet location rated, with 2KV s
Mounting Procedure
Ceiling/Wall
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +45C (+113F)
Photocell
Integrated Microwave Sensor
Rated For Vapor Tight Fixture
Yes
Replaceable Light Source
No
Romance Copy
SATCO NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These
Safety Listing
cETLus - Listed
Short Description
4' LINEAR VAPOR PROOF W/SENSOR
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
Exempt
Total Harmonic Distortion
17.60%
